Servo system Unmanned edge saw

Servo system Unmanned edge saw
Servo system Unmanned edge saw
Servo system Unmanned edge saw
Parameter Performance
Parameters of automatic edge sawing machine
modelJS48-1-B-W
Equipped systemPLCsystem/server system
Processing thickness(mm)3-60
Processing size(mm)1220-1240   2440-2460
Saw blade diameter(mm)φ305
Saw blade speed(r/min)6100
Feeding speed(m/min)0-30
Equipped with power(KW)45
Sawing motor(KW)7.5

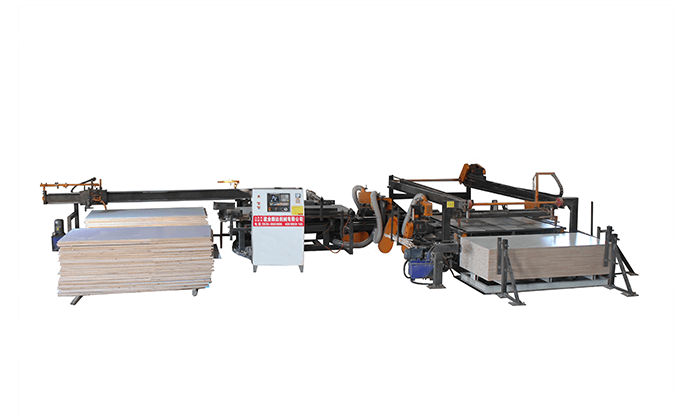

Jianye Shunda Machinery Servo automatic edge sawing machine. This edge sawing machine integrates the advantages of stepper system / PIC system.


① The power output of the servo system motor is more stable. Do not use any sensor proximity switch, avoiding the phenomenon of sawing the board due to the sensor or proximity switch failure or sudden power failure or damage, and avoiding the frequent damage of the various switches of the saw edge machine. The tedious change.


② The system can memorize the position of the motor (saw edge). Even in the event of a sudden power failure, the position of the artificial equipment can automatically detect the original position. The servo system can automatically diagnose and detect the environment outside the sawing process, and can manually monitor the solenoid valve. Whether the function is damaged.


   ③ Servo full-automatic sawing machine, with a more humanized design concept, meets any requirements for sawing in the plate industry, and the operation is simpler.


   ④Manual / automatic start as an integrated operation mode. The automatic lifting platform positioning uses the integrated positioning function and automatic stacking to make the sawn boards more neat and easier to pack putty. Energy saving reduces the cost of the board industry and improves competition in the enterprise market. Got motivated.


 This product is suitable for sawing edges such as particleboard, MDF, Malacca, plywood, blockboard, multi-layer boards, fire-resistant boards, melamine substrates, building templates, plastic-steel membrane boards, bamboo-clad boards, flame-retardant boards, packaging boards
