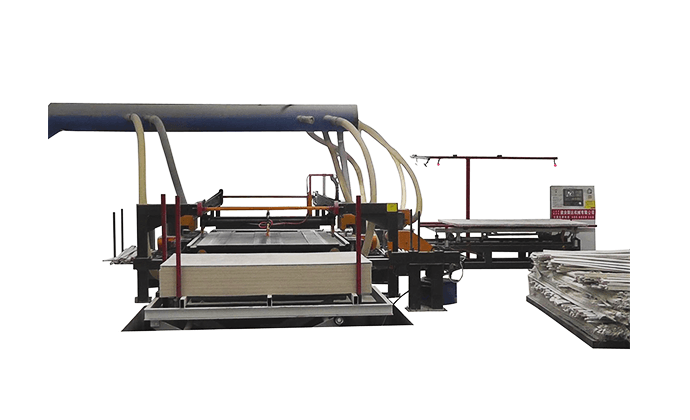

Performance of Jianye Shunda Machinery Full-automatic Edge Saw:

1: Jianye Shunda Machinery uses servo control system (new control system brain)

2: Use servo motor (stable power output, good sawing effect, which cannot be compared with ordinary inverter motors)

3: High-precision positioning (the inertia caused by the rapid movement of the saw edge table, the position deviation will not exceed 0.5 mm, which is several times the accuracy of the PLC system)

4: Do not use any proximity switch, the sensor automatically memorizes the saw edge position, no maintenance is required, reducing maintenance costs (stepping PLC systems must use a proximity switch sensor, and it often fails to break and cause sawing waste boards)

5: System signal transmission uses optical transmission (no more control lines will appear, reducing the frequency of failure)

6: With memory function, one sheet will not be scrapped under normal air pressure (like the human brain, the position of the sheet is memorized, and data will not be lost even under sudden power failure)

7: Casting base (can reduce the vibration when sawing the edge and improve the smoothness of the edge)

8: All the racks are welded with 5MM thick rectangular tubes and processed by gantry planing (to ensure the accuracy of the sawing machine)

9: Use 8 saw blades for sawing, speed up to 7000 rpm, circulating lubricant (high speed is the key factor to ensure good sawing effect)

   This product is suitable for: "Particle board, MDF, Malacca, plywood, blockboard, multilayer board, fire-resistant board, melamine substrate, building template, plastic-steel membrane board, bamboo-clad board, flame-retardant board, packaging board" side.
